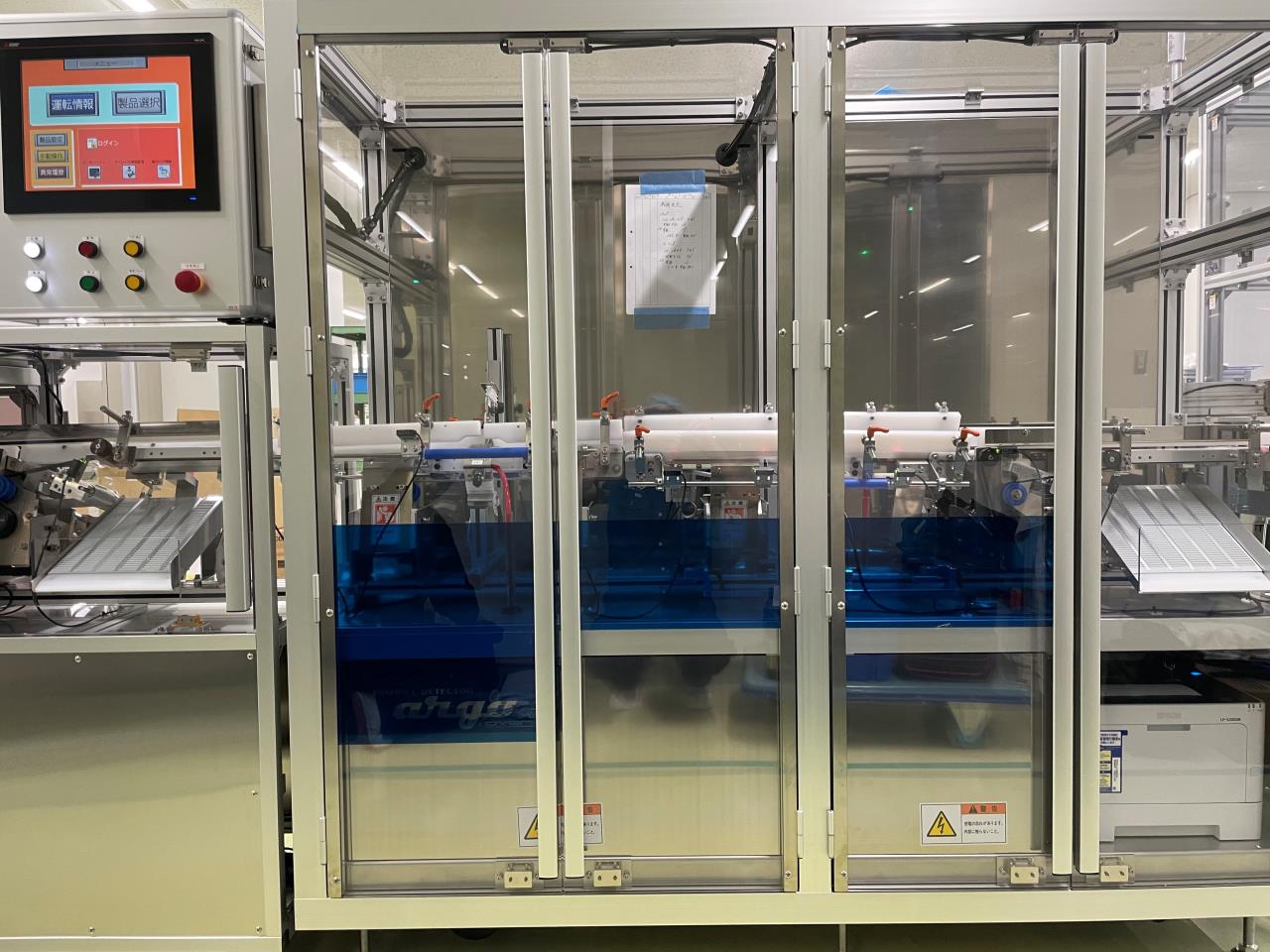

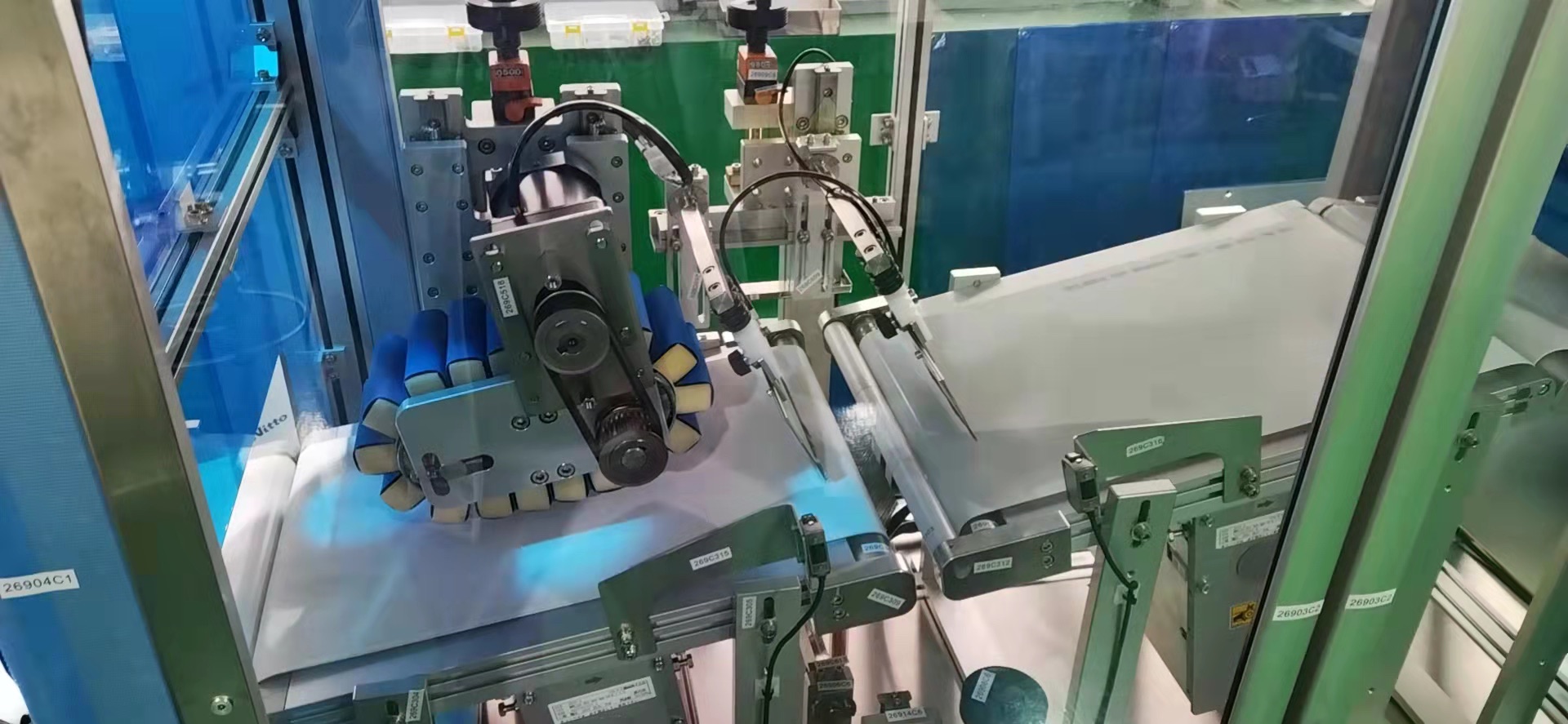

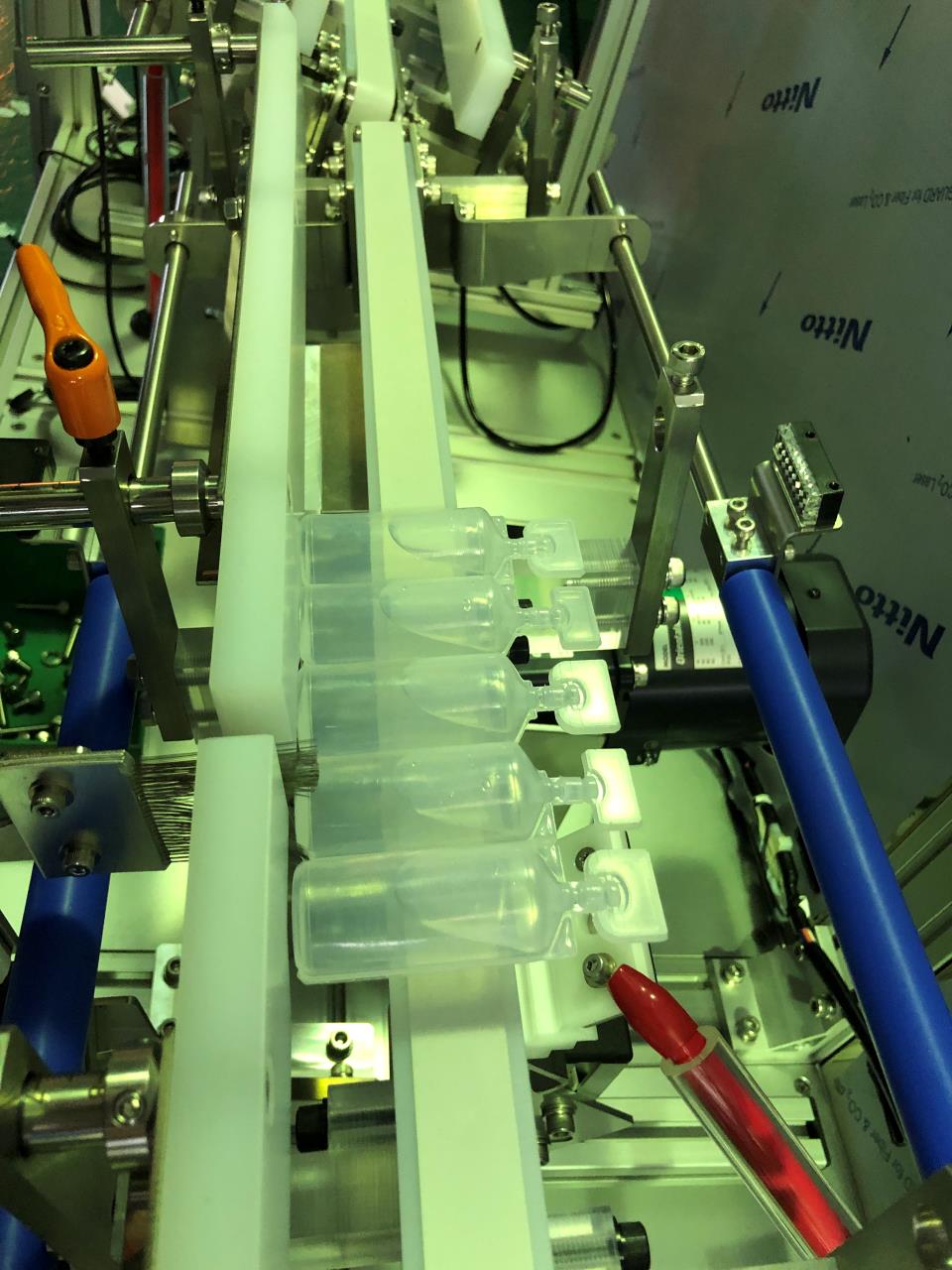

LEAKPECIO Series -- For infusion bags/plastic infusion bottles (online)

Features:
Basically no ozone generation (according to the actual test data of a customer).
Low conductivity liquids can also be detected.
Strong anti-interference, a small amount of air layer in the packaging and a small amount of water on the packaging surface do not affect the detection  leak rate is low, and improves the product quality and the yield of good product.
Low error detection rate, reduce production cost and the risk of defective products mixed.

Technical Date:

Capacity

Single belt: 5000 pcs/h (<500mL) / 3000 pcs/h(> 500mL); Double belt: 10000 pcs/h (< 500mL) / 6000 p c s/h(> 500mL)

Inspection bag size

50-1000mL

Inspecton Voltage

1 -20kV

The Se nsitivity

below 10pm

Voltage

200V-50/60Hz

Power consumption

2KW

The com pressed air

100NL/min

Weight

1000kg



Note: the above parameters are subject to change according to custom equipment rules

Note: Online equipment is customized equipment
